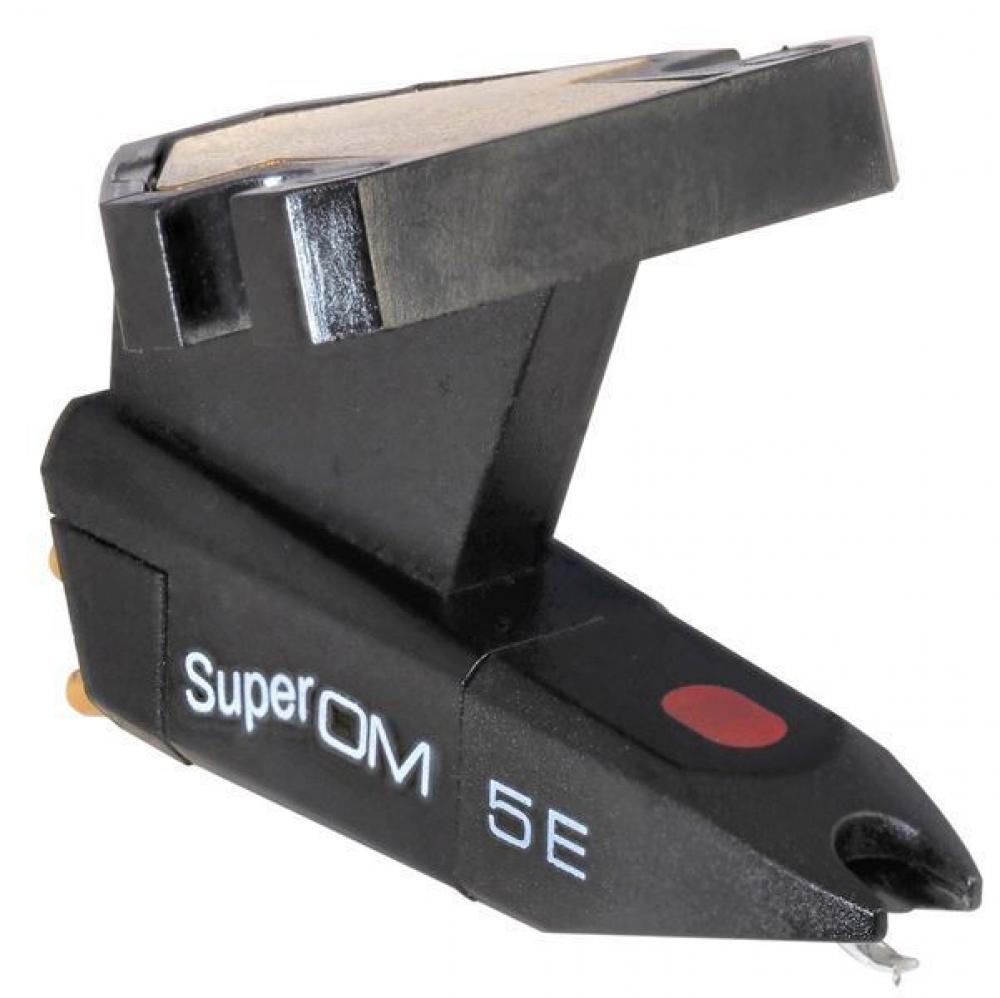

Ortofon Super OM 5E äänirasia

The Super OM 5E major improvements:

1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.

2. Slit less than 1 mm dia. hollow pole pins significantly reduces eddy current losses caused by magnetic hysteresis. This technology extends the frequency range and improves phase linearity.

3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.

Output voltage at 1000 Hz, 5cm/sec. - 4 mV

Channel balance at 1 kHz  -  1.5 dB

Channel separation at 1 kHz  -  22 dB

Channel separation at 15 kHz  -  15 dB

Frequency range at - 3dB  -  20 - 25.000 Hz

Frequency response  -  20-20.000 Hz ± 2 dB

Tracking ability at 315Hz at recommended tracking force - 65 µm

Compliance, dynamic, lateral  -  20 µm/mN

Stylus type  -  Elliptical

Stylus tip radius  -  r/R 8/18 µm

Tracking force range  -  1.5-2.0 g (15-20 mN)

Tracking force, recommended  -  1.75 g (17.5 mN)

Tracking angle  - 20°

Internal impedance, DC resistance  -  1 kOhm

Internal inductance  -  580 mH

Recommended load resistance   -  47 kOhm

Recommended load capacitance -   200-500 pF

Cartridge colour, body/stylus - Black/Black

Cartridge weight incl. extra weight -  5 g

Cartridge weight excl. extra weight -  2.5 g

Replacement stylus unit  - Stylus 5 E, Stylus 10
