Ortofon 2M Red äänirasia

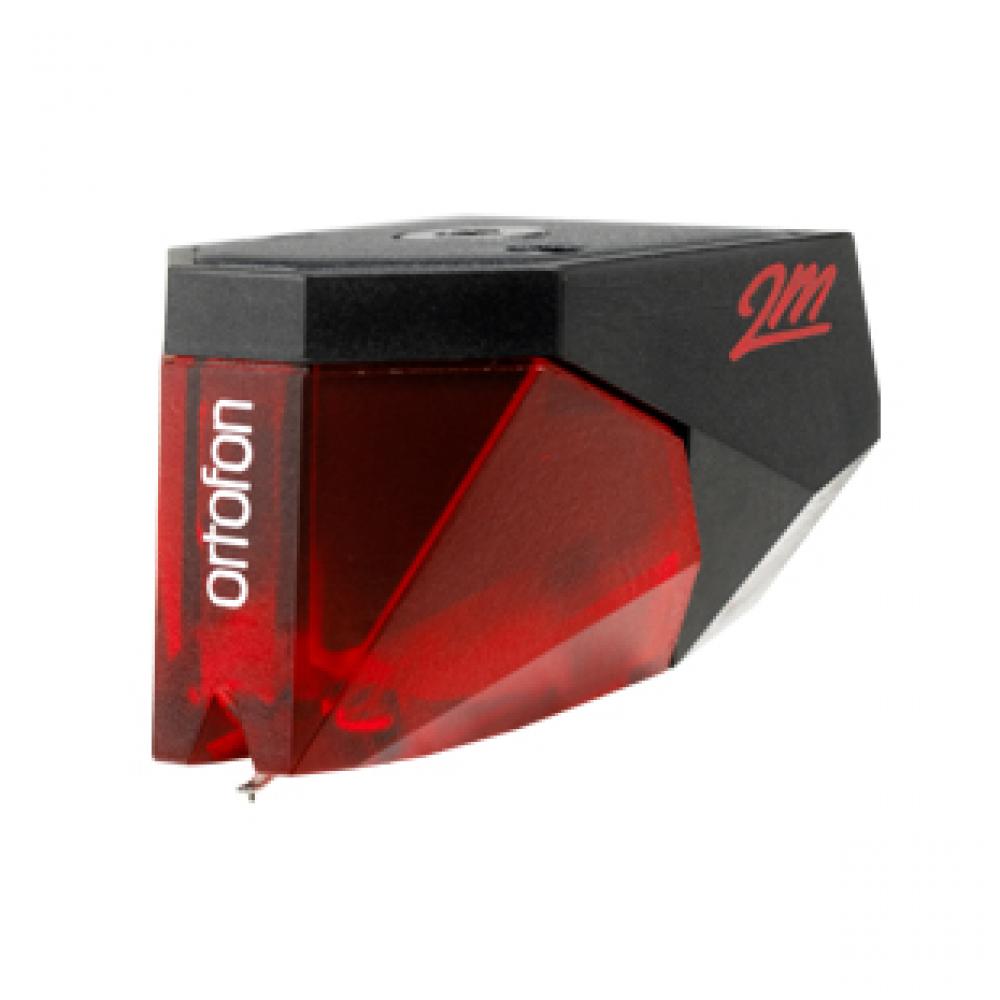

Ortofon 2M Red MM äänirasia

2M Red - The 2M series were developed in conjunction with Danish designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

Tekniset tiedot:

Output voltage at 1000 Hz (5cm/sec.): 5,5 mV
Channel balance at 1 kHz: 1,5 dB
Channel separation at 1 kHz: 22 dB
Channel separation at 15 kHz: 15 dB
Frequency range at - 3dB: 20-22.000 Hz
Frequency response: 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force: 70 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 1,6-2,0g (16-20 mN)
Tracking force, recommended: 1,8 g (18 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1,3 kOhm
Internal inductance: 700 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 150-300 pF
Cartridge colour, body/stylus: Black/Red
Cartridge weight: 7,2 g
